Server Memory - Redis

Redis is a server memory that stores data with a key-value pair. It does not depend on the database so it takes the burden of having to manage the data and it is fast. In addition, compared to local storage, another option to store data without depending on a database, it gives us control over the data. Well, enough talking, let's get into it.

Why Do We Use It?

• Fast
• Control over the data
• Persistence (Redis takes a snapshot of the data every other minute, so even if the server goes down, there is less risk of losing the data)
• Option to set the expiry date

Setting Up the Project

Creating a WebAPI Project

How to create .NET web-API

Installing Docker

Docker - Installation

Setting Up Redis

Download the file below and save it in the root of the project

docker-compose.yml

0.00MB

services:

  redis:
    image: redis:latest
    ports:
      - 6379:6379
    command: ["redis-server", "--appendonly", "yes"]
    volumes:
      - redis-data:/data

  redis-commander:
    image: rediscommander/redis-commander:latest
    environment:
      - REDIS_HOSTS=local:redis:6379
      - HTTP_USER=root
      - HTTP_PASSWORD=secret
    ports:
      - 8081:8081
    depends_on:
      - redis

volumes:
  redis-data:

Open the docker desktop and run the containers

Go to the editor and run the command below in the console

docker-compose up

Implementation

Installing Packages

Open 'NugetGallary' and install the Redit package

StackExchange.Redis

Creating Environment Variables

Go to the 'appsettings' file and add a connection string for Redis to use as an environment variable

Setting Up Services

Go to the Program.cs file and add the Redis as a service

builder.Services.AddSingleton<IConnectionMultiplexer>(c =>
{
  var opt = ConfigurationOptions.Parse(builder.Configuration.GetConnectionString("Redis"));
  return ConnectionMultiplexer.Connect(opt);
});

Using Redis

Let's see how we can use the Redis using the cart feature as an example

Creating Entities

Add a class to store the cart entity

Add ID and items as their properties. For the ID use the string type as this will be provided in the string type

Add another entity for items and add properties as you wish

Go back to the Cart entity and add a constructor. And initialize the item property with an empty list

Creating a Controller

Add a class to set up as a controller

Add a constructor and inject the Redis

▶ Cart List

[HttpGet]
public async Task<ActionResult<Basket>> GetBasket(string id)
{
  var data = await _db.StringGetAsync(id);
  var basket = data.IsNullOrEmpty ? null : JsonSerializer.Deserialize<Basket>(data);
  return basket ?? new Basket(id);
}

▶ Adding or Updating a Cart

[HttpPost]
public async Task<ActionResult<Basket>> UpdateBasket(Basket basket)
{
  var UpdatedBasket = await _db.StringSetAsync(basket.Id, JsonSerializer.Serialize(basket), TimeSpan.FromDays(10));

  if (UpdatedBasket) return null;

  return await GetBasket(basket.Id);
}

▶ Removing a Cart

[HttpDelete]
public async Task DeleteBasket(string id)
{
  await _db.KeyDeleteAsync(id);
}

Testing

Move to the API folder

cd /API

And run the app



dotnet watch

Open the docker app and run the server

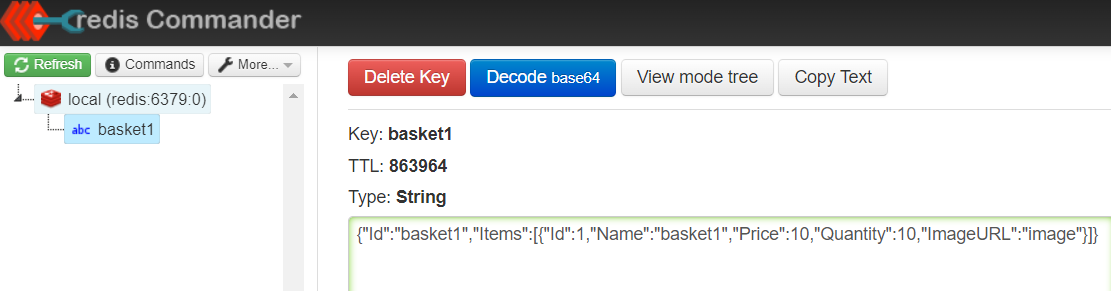

Open the Redis Commander to see the data

▶ Adding or Updating a Cart

▶ Cart List

▶ Removing a Cart

In this writing, we have seen how we can use Redis.
